This appendix contains cable pinout information for the following ports located on the back of the Challenge S server:
serial port
parallel port
Ethernet 10-BASE T port
ISDN (integrated services digital network) port
Ethernet AUI (access unit interface) port
keyboard port
mouse port
SCSI port (small computer system interface) port
 | Note: The figures in this chapter show the connector pin assignments, not the cable pin assignments. |
Table A-1 shows cable pinout assignments for the two serial ports.
Table A-1. 4D-Compatible Pin Assignments (RS-232)
Pin | Assignment | Description |
|---|---|---|
1 | DTR | Data Terminal Ready |
2 | CTS | Clear To Send |
3 | TD | Transmit Data |
4 | SG | Signal Ground |
5 | RD | Receive Data |
6 | RTS | Request To Send |
7 | DCD | Data Carrier Detect |
8 | SG | Signal Ground |

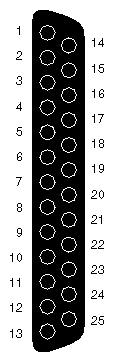

Table A-2 shows the cable pinout assignments for the parallel port.
Table A-2. Parallel Port (25-Pin DSUB Connector) Pin Assignments
Pin | Assignment |
|---|---|
1 | STROBE |
2 | DATA(0) |
3 | DATA(1) |
4 | DATA(2) |
5 | DATA(3) |
6 | DATA(4) |
7 | DATA(5) |
8 | DATA(6) |
9 | DATA(7) |
10 | ACK |
11 | BUSY |
12 | PE (Paper End) |
13 | SELECT |
14 | AUTOFEED |
15 | ERROR/FAULT |
16 | INIT/RESET |
17 | SELECT-IN (Direction) |
18 | GROUND |
19 | GROUND |
20 | GROUND |
21 | GROUND |
22 | GROUND |
23 | GROUND |
24 | GROUND |
25 | GROUND |
Table A-3 shows the cable pinout assignments for the Ethernet 10-BASE T port.
Table A-3. Ethernet 10-BASE T Port Pin Assignments
Pin | Assignment |
|---|---|
1 | TRANSMIT+ |
2 | TRANSMIT– |
3 | RECEIVE+ |
4 | (Reserved) |
5 | (Reserved) |
6 | RECEIVE– |
7 | (Reserved) |
8 | (Reserved) |
Table A-4 shows the cable pinout assignments for the ISDN port.
Table A-4. ISDN Port Pin Assignments
Pin | Assignment |
|---|---|
1 | (Reserved) |
2 | (Reserved) |
3 | TRANSMIT+ |
4 | RECEIVE+ |
5 | RECEIVE- |
6 | TRANSMIT- |
7 | (Reserved) |
8 | (Reserved) |
Table A-5 shows the cable pinout assignments for the Ethernet AUI port.
Table A-5. Ethernet AUI Port (Thicknet) Pin Assignments
Pin | Assignment |
|---|---|
1 | GROUND |
2 | COLLISION+ |
3 | TRANSMIT+ |
4 | GROUND |
5 | RECEIVE+ |
6 | GROUND |
7 | (Reserved) |
8 | GROUND |
9 | COLLISION- |
10 | TRANSMIT- |
11 | GROUND |
12 | RECEIVE- |
13 | +12V |
14 | GROUND |
15 | (Reserved) |

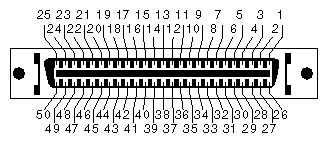

Table A-6 shows the cable pinout assignments for the 50-pin, high-density, single-ended SCSI port.
| Note: A plus sign (+) preceding a signal name means the signal is active high. A minus sign means the signal is active low. |
Table A-6. 50-Pin, High-Density, Single-Ended SCSI Port Pin Assignments
Pin | Assignment |
|---|---|
1 | GROUND |
2 | GROUND |
3 | GROUND |
4 | GROUND |
5 | GROUND |
6 | GROUND |
7 | GROUND |
8 | GROUND |
9 | GROUND |
10 | GROUND |
11 | GROUND |
12 | (Reserved) |
13 | Open |
14 | (Reserved) |
15 | GROUND |
16 | GROUND |
17 | GROUND |
18 | GROUND |
19 | GROUND |
20 | GROUND |
21 | GROUND |
22 | GROUND |
23 | GROUND |
24 | GROUND |
25 | GROUND |
26 | –DB(0) |
27 | –DB(1) |
28 | –DB(2) |
29 | –DB(3) |
30 | –DB(4) |
31 | –DB(5) |
32 | –DB(6) |
33 | –DB(7) |
34 | –DB(P) |
35 | GROUND |
36 | GROUND |
37 | (Reserved) |
38 | TERMPWR |
39 | (Reserved) |
40 | GROUND |
41 | –ATN |
42 | GROUND |
43 | –BSY |
44 | –ACK |
45 | –RST |
46 | –MSG |
47 | –SEL |
48 | –C/D |
49 | –REQ |
50 | –I/O |
Table A-7 shows the port pin assignments for the 68-pin, high-density SCSI connector.
| Note: A plus sign (+) preceding a signal name means the signal is active high. A minus sign means the signal is active low. |
Table A-7. 68-Pin, High-Density, Differential SCSI Port Pin Assignments
Pin | Assignment |
|---|---|
1 | +DB(12) |
2 | +DB(13) |
3 | +DB(14) |
4 | +DB(15) |
5 | +DB(P1) |
6 | GROUND |
7 | +DB(0) |
8 | +DB(1) |
9 | +DB(2) |
10 | +DB(3) |
11 | +DB(4) |
12 | +DB(5) |
13 | +DB(6) |
14 | +DB(7) |
15 | +DB(P) |
16 | DIFFSENS |
17 | TERMPWR |
18 | TERMPWR |
19 | (Reserved) |
20 | +ATN |
21 | GROUND |
22 | +BSY |
23 | +ACK |
24 | +RST |
25 | +MSG |
26 | +SEL |
27 | +C/D |
28 | +REQ |
29 | +I/O |
30 | GROUND |
31 | +DB(8) |
32 | +DB(9) |
33 | +DB(10) |
34 | +DB(11) |
35 | –DB(12) |
36 | –DB(13) |
37 | –DB(14) |
38 | –DB(15) |
39 | –DB(P1) |
40 | GROUND |
41 | –DB(0) |
42 | –DB(1) |
43 | –DB(2) |
44 | –DB(3) |
45 | –DB(4) |
46 | –DB(5) |
47 | –DB(6) |
48 | –DB(7) |
49 | –DB(P) |
50 | GROUND |
51 | TERMPWR |
52 | TERMPWR |
53 | (Reserved) |
54 | –ATN |
55 | GROUND |
56 | –BSY |
57 | –ACK |
58 | –RST |
59 | –MSG |
60 | –SEL |
61 | –C/D |
62 | –REQ |
63 | –I/O |
64 | GND |
65 | –DB(8) |
66 | –DB(9) |
67 | –DB(10) |
68 | –DB(11) |
